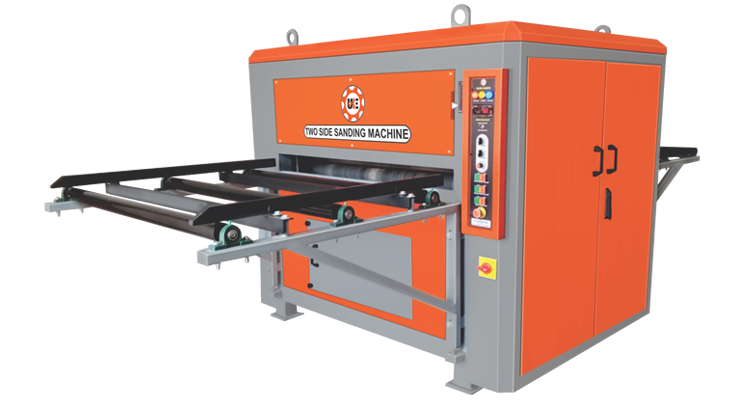

AUTOMATIC BRUSH ROLLER SANDING MACHINE (Manual Machine Also Available)
| MODEL | 2 Head | 4 Head | 6 Head |
|---|---|---|---|
| Number of brush roller | 2 No | 4 No | 6 No |
| Brush roller size | 200 mm OD X 1270 mm length | 200 mm OD X 1270 mm length | 200 mm OD X 1270 mm length |
| Sanding position | Only top side | Top & Bottom side | Top & Bottom side |
| Max. sanding speed | 3 Ply sheet / Minute | 3 Ply sheet / Minute | 3 Ply sheet / Minute |
| Sheet thickness | Min. 4 mm to Max. 50 mm | Min. 4 mm to Max. 50 mm | Min. 4 mm to Max. 50 mm |
| Vacuum blower | 2 Panel | 3 Panel | 3 Panel |
| Power consumption | 11Hp (without blower) | 20.5Hp (without blower) | 22.5Hp (without blower) |
| Sanding + Steel wool (Combo 2 in 1) | – | – | Both work |
*Specifications are subjected to change without notice.
| Technology | Abrasive Brush / Roller Process |
|---|---|
| Surfacing | Consistent Uniform Surface |
| Quality | Finishing due to self dressing |
| Labors | User friendly can be operate by unskill labor |
| Life | Longer brush life |
| Consumable Cost | Very economical due to longer life |
| Productivity | Increasing the productivity |
| Maintenance Cost | Maintenance free process |
*Specifications are subjected to change without notice.
